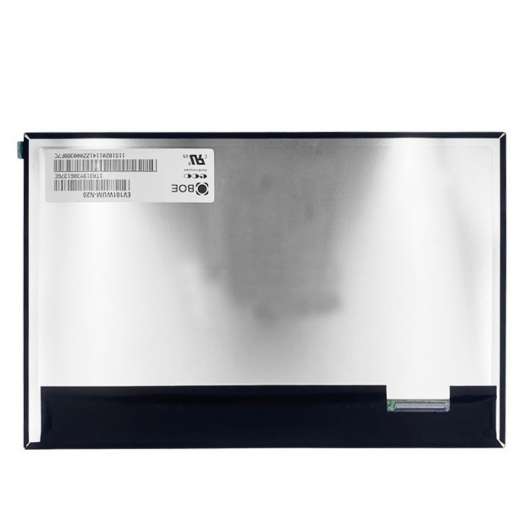

1、BOE EV101WUM-N20 Application DetailsBasic Detail :ManufacturerBOEModel NameEV101WUM-N20Panel Typea-Si TFT-LCD , LCMAn
| Model | EV101WUM-N20 |
| Brand | BOE |
| Size | 10.1inch |
| Resolution | 1920*1200 |
| Brightness | 470 cd/m² (Min.) |
| Perspective | 80/80/80/80 |
| Interface | LVDS |
| Operating Temp | 0 ~ 50 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1、BOE EV101WUM-N20 Application Details
Basic Detail :
Manufacturer
BOE
Model Name
EV101WUM-N20
Panel Type
a-Si TFT-LCD , LCM
Another Name
Panel Size
21.3 inch
Designed For
Medical Imaging
Maximum Ratings :
OP Temperature
-20 ~ 70 °C
ST Temperature
-30 ~ 85 °C
RoHS
RoHS
Vibration Level
Features :
High Brightness，WLED Backlight，Reverse I/F
2、BOE EV101WUM-N20 Optical Details
Basic Detail :
Luminance
600 cd/m² (Typ.)
Contrast Ratio
900:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
30 (Typ.)(Tr+Td) ms
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Operating Mode
ADS, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.285; Wy:0.327
Support Color
16.7M (8-bit)
Color Temperature
8210K
White Variation
-
1931 Color Gamut :
NTSC Ratio
75%
sRGB
95% coverage
Adobe RGB
74% coverage
DCI-P3
77% coverage
Rec.2020
56% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
3、BOE EV101WUM-N20 Mechanical Details
Pixel Features :
Number of Pixel
1920(RGB)×1200, WUXGA
Arrangement
RGB Vertical Stripe
Dot Pitch
0.03764×0.11292 mm
Pixel Pitch(W×H)
0.11292×0.11292 mm [224PPI]
Physical Size :
Active Viewing
(mm)
216.806(W)×135.504(H) mm
Overall Dim.
228.5(W)×149.3(H) mm
Bezel Opening
-
Depth(mm)
4.55 (Typ.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
16:10
Shape Style
-
Fixation :
Without
4、BOE EV101WUM-N20 Electronics Details
Refresh Rate :
60Hz
Reverse Scan :
No
5、BOE EV101WUM-N20 Interface Detail
Signal Electrical :
Input Current
300/360mA (Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
1.0/1.2W (Typ./Max.)
Signal Interface
LVDS (2 ch, 8-bit)
Interface Features :
Position
Down right of panel
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
HRS
FH34SRJ-45S-0.5SH(50)
0.5mm
45 pins
1 pcs
6、BOE EV101WUM-N20 Backlight Details
Lamp Features :
Lamp Type
WLED
Amount
-
Position
Edge light type
Exchange
-
Lamp Shape
-
Lamp Life
Lamp Electrical :
Input Current
Input Voltage
17/21/23V (Min./Typ./Max.)
Interface Features :
Position
-
Type
Included in signal interface
Lamp Driver
No
7、BOE EV101WUM-N20 Carton Details
Box Type
Pcs/Box
Package LWH (mm)
G.W (kgs)
50
564×413×290
N/A
