G084SN05 V9 AUO 8.4 inch LCD Panel Wide Temperature -30~80C Industry 8.4 Inch TFT LCD Module

G084SN05 V9 AUO 8.4 inch LCD Panel Wide Temperature -30~80C Industry 8.4 Inch TFT LCD Module

AUO 8 4 inch LCD Panel G084SN05 V9 Wide Temperature -30~80C Industry 8 4 Inch TFT LCD Module

Model G084SN05 V9
Brand AUO
Size 8.4inch
Resolution 800*600
Brightness 450 cd/m² (Typ.)
Perspective 80/80/80/60 (Typ.)
Interface LVDS
Operating Temp -30 ~ 85 °C
Production State In Production

AUO G084SN05 V9 Application Details

Basic Detail :ManufacturerAUOModel NameG084SN05 V9
Panel Typea-Si TFT-LCD , LCMModel Alias
Panel Size8.4inchDesigned ForIndustrial
Maximum Ratings :OP Temperature-30 ~ 85 °CST Temperature-30 ~ 85 °C
RoHSRoHSVibration Level1.5G (14.7 m/s²))
Features :Wide Temperature,Lamp Repaceable,WLED Backlight,Life>=50K hours,With LED Driver,6/8bit,Matte,U/D/L/R Reverse


AUO G084SN05 V9 Optical Details

Basic Information :Luminance450 cd/m² (Typ.)Contrast Ratio600:1 (Typ.) (Transmissive)
Good View at6 o'clockResponse Speed20/10 (Typ.)(Tr/Td)
Viewing Angle

80/80/80/60 (Typ.)(CR≥10)

Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityWx:0.310; Wy:0.330Support Color262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature6638KWhite Variation1.33/1.43 (Typ./Max.)(9 points)
1931 Color Gamlt :NTSC Ratio52%sRGB72% coverage
Adobe RGB54% coverageDCI-P354% coverage
Rec.202039% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


AUO G084SN05 V9 Mechanical Details

Pixel Features :Number of Pixel800(RGB)*600, SVGAArrangementRGB Vertical Stripe
Dot Pitch(W×H)0.071*0.213 (H×V)Pixel Pitch(W×H)0.213*0.213 (H×V)  [119PPI]

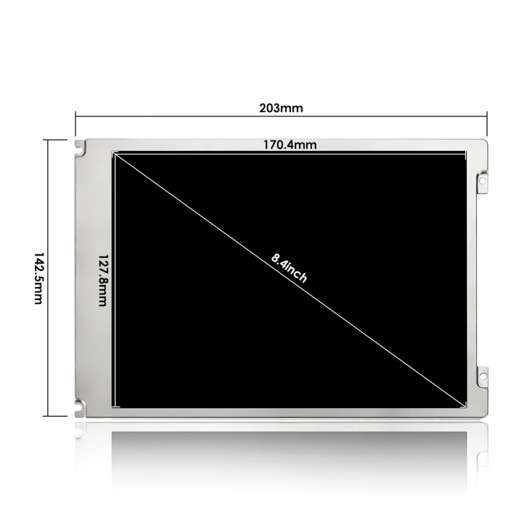

Physical Size :Active Viewing(mm)170.4(H) *127.8(V)Outline Dim.(mm)203(H) *142.5(V)
Bezel Opening(mm)174.15(H) *131.2(V)Overall Depth(mm)8.0 (Max.)
Outline Features :Form StyleFlat RectangleShape Style
Aspect Ratio4:3(H:V)OrientationLandscape type
Mounting :Face mounting holes (2-Φ3.0, 2-R1.5) on left, right bezel
Other Detail :Weight250g (Typ.)TreatmentAntiglare, Hard coating (3H)


AUO G084SN05 V9 Electronics Details

Refresh Rate :60Hz
Reverse Scan :Yes (U/D, L/R)
Time Controller (T-CON) :2.94W (Typ.)


AUO G084SN05 V9 Interface Detail

Signal Electrical :Input Current270/330mA (Typ./Max.)Input Voltage3.3V (Typ.)
Consumption0.9/1.2W (Typ./Max.)Signal InterfaceLVDS (1 ch, 6/8-bit)
Interface Features :Position-Physical TypeConnector
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
HRSDF19LA-20P-1H1.0 mm20pins1 pcsLVDS-20P1C8B-140A


AUO G084SN05 V9 Backlight Details

Lamp Features :Lamp TypeWLEDAmount9S3PPositionEdge light type (Bottom side)
ExchangeReplaceableLamp Shape2stringsLamp Life50K(Min.) (Hours)
Lamp Electrical :Input Voltage19.2/21.9V (Typ./Max.)Current Supply50/52.5mA (Typ./Max.)
Consumption1.92W (Typ.)
Interface Features :Position-TypeConnector
Interface Detail :BrandModelPitchPinsQuantityPin Configuration
E&T3808K-F04N-02R1.25 mm4 pins1 pcs
Backlight Driver :With LED Driver
Driver Electrical :


Voltage Supply10.8/12.0/12.6V (Min./Typ./Max.)Current Supply0.17A (Typ.)
Consumption2.04/2.14W (Typ./Max.)


AUO G084SN05 V9 Packing Details

Package Box :AmountSize (L*W*H)Weight
30pcs / box405*328*301 mm (L*W*H)12.0 Kgs



AUO G084SN05 V9 Application Details

Basic Detail :ManufacturerAUOModel NameG084SN05 V9
Panel Typea-Si TFT-LCD , LCMModel Alias
Panel Size8.4inchDesigned ForIndustrial
Maximum Ratings :OP Temperature-30 ~ 85 °CST Temperature-30 ~ 85 °C
RoHSRoHSVibration Level1.5G (14.7 m/s²))
Features :Wide Temperature,Lamp Repaceable,WLED Backlight,Life>=50K hours,With LED Driver,6/8bit,Matte,U/D/L/R Reverse


AUO G084SN05 V9 Optical Details

Basic Information :Luminance450 cd/m² (Typ.)Contrast Ratio600:1 (Typ.) (Transmissive)
Good View at6 o'clockResponse Speed20/10 (Typ.)(Tr/Td)
Viewing Angle

80/80/80/60 (Typ.)(CR≥10)

Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityWx:0.310; Wy:0.330Support Color262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature6638KWhite Variation1.33/1.43 (Typ./Max.)(9 points)
1931 Color Gamlt :NTSC Ratio52%sRGB72% coverage
Adobe RGB54% coverageDCI-P354% coverage
Rec.202039% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


AUO G084SN05 V9 Mechanical Details

Pixel Features :Number of Pixel800(RGB)*600, SVGAArrangementRGB Vertical Stripe
Dot Pitch(W*H)0.071*0.213 (H*V)Pixel Pitch(W*H)0.213*0.213 (H*V)  [119PPI]
Physical Size :Active Viewing(mm)170.4(H) *127.8(V)Outline Dim.(mm)203(H) *142.5(V)
Bezel Opening(mm)174.15(H) *131.2(V)Overall Depth(mm)8.0 (Max.)
Outline Features :Form StyleFlat RectangleShape Style
Aspect Ratio4:3(H:V)OrientationLandscape type
Mounting :Face mounting holes (2-Φ3.0, 2-R1.5) on left, right bezel
Other Detail :Weight250g (Typ.)TreatmentAntiglare, Hard coating (3H)


AUO G084SN05 V9 Electronics Details

Refresh Rate :60Hz
Reverse Scan :Yes (U/D, L/R)
Time Controller (T-CON) :2.94W (Typ.)


AUO G084SN05 V9 Interface Detail

Signal Electrical :Input Current270/330mA (Typ./Max.)Input Voltage3.3V (Typ.)
Consumption0.9/1.2W (Typ./Max.)Signal InterfaceLVDS (1 ch, 6/8-bit)
Interface Features :Position-Physical TypeConnector
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
HRSDF19LA-20P-1H1.0 mm20pins1 pcsLVDS-20P1C8B-140A


AUO G084SN05 V9 Backlight Details

Lamp Features :Lamp TypeWLEDAmount9S3PPositionEdge light type (Bottom side)
ExchangeReplaceableLamp Shape2stringsLamp Life50K(Min.) (Hours)
Lamp Electrical :Input Voltage19.2/21.9V (Typ./Max.)Current Supply50/52.5mA (Typ./Max.)
Consumption1.92W (Typ.)
Interface Features :Position-TypeConnector
Interface Detail :BrandModelPitchPinsQuantityPin Configuration
E&T3808K-F04N-02R1.25 mm4 pins1 pcs
Backlight Driver :With LED Driver
Driver Electrical :


Voltage Supply10.8/12.0/12.6V (Min./Typ./Max.)Current Supply0.17A (Typ.)
Consumption2.04/2.14W (Typ./Max.)


AUO G084SN05 V9 Packing Details

Package Box :AmountSize (L*W*H)Weight
30pcs / box405*328*301 mm (L*W*H)12.0 Kgs
