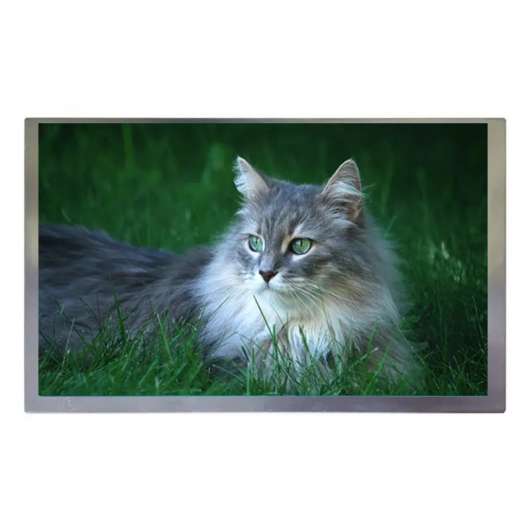

G070VTN02.0 AUO 7 Inch 800x480 TFT LCD Module High Brightness Wide Temperature LCD Display

G070VTN02 0 AUO 7 Inch 800x480 TFT LCD Module High Brightness Wide Temperature LCD Display Panel For Outdoor Application

Model	G070VTN02.0
Brand	AUO
Size	7.0inch
Resolution	800*480
Brightness	1500cd/m2
Perspective	65/65/50/60
Interface	RGB
Operating Temp	-30 ~ 70 °C
Production State	Discontinued

Click For Price

AUO G070VTN02.0 Application Details

Basic Detail :	Manufacturer	AUO	Model Name	G070VTN02.0
	Panel Type	a-Si TFT-LCD , LCM	Model Alias
	Panel Size	7.0inch	Designed For	Industrial ，Outdoor High Brightness，Automotive Display
Maximum Ratings :	OP Temperature	-30~ 70 °C	ST Temperature	-40 ~ 95 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level	2.9G (28.4 m/s2;)
Features :	Wide Temperature，3G Vibration，Ultra High Brightness，U/D/L/R Reverse，WLED Backlight，Matte

AUO G070VTN02.0 Optical Details

Basic Information :	Luminance	1500cd/m² (Typ.)	Contrast Ratio	600:1 (Typ.) (Transmissive)
	Good View at	-	Response Speed	12/18 (Typ.)(Tr/Td)
	Viewing Angle	65/65/50/60 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.306; Wy:0.328	Support Color	262K (6-bit)
Color Performance :	Color Temperature	6880K	White Variation	1.33/1.43 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	66%	sRGB	88% coverage
	Adobe RGB	68% coverage	DCI-P3	69% coverage
	Rec.2020	49% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :	Outdoor Visibility	Sunlight Readable	Transmittance	-

AUO G070VTN02.0 Mechanical Details

Pixel Features :	Number of Pixel	800(RGB)×480, WVGA			Arrangement	RGB Vertical Stripe
	Dot Pitch(W×H)	0.0635×0.1905 mm			Pixel Pitch(W×H)	0.1905×0.1905 mm [133PPI]
Physical Size :	Active Viewing(mm)	152.4(W)×91.44(H) mm			Overall Dim.	169(W)×103.51(H) mm
	Bezel Opening	155.41(W)×94.66(H) mm			Overall Depth(mm)	6.22±0.3 mm
Outline Features :	Form Style		Flat Rectangle	Shape Style
	Aspect Ratio		15:9 (H:V)	Orientation			Landscape type
Fixation :	Without
Other Detail :	Weight	157g (Typ.)			Surface	Antiglare, Hard coating (3H)

AUO G070VTN02.0 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	Yes (U/D, L/R)
Time Controller (T-CON) :	Embedded T-CON

AUO G070VTN02.0 Interface Detail

Signal Electrical :	Input Current	11.6/22.2/0.22/0.27mA (Typ.)(IDD/AIDD/IGH/IGL)		Input Voltage	3.3/11.0/20.0/-10.0V (Typ.)(VDD/AVDD/VGH/VGL)
	Consumption	290mW (Typ.)	Signal Interface		Parallel RGB (1 ch, 6-bit)
Logic Voltage :	0≤VIL≤0.3VDDIO; 0.7VDDIO≤VIH≤VDDIO
Interface Features :	Position	-	Physical Type		FPC
Interface Detail :	Brand	Model	Pin Pitch	Pins	Amount	Pin Assignment
			0.5mm	50 pins	1 pcs

AUO G070VTN02.0 Backlight Details

Lamp Features :

Lamp Type

WLED

Amount

8S2P

Position

Edge light type

Exchange

Lamp Shape

2 strings

Lamp Life

10K(Min.) (Hours)

Lamp Electrical :

Input Voltage

25.6/27.2V (Typ./Max.)

Input Current

100mA (Typ.)

Consumption

5.44W (Max.)

Interface Features :

Position

Type

FPC

Interface Detail :

Brand

Model

Pitch

Pins

Quantity

Pin Configuration

1.0 mm

8 pins

1 pcs

BLE-8PINS-AANCCNNN

Backlight Driver :

AUO G070VTN02.0 Packing Details

Package Box :	Amount	Size (LWH)	Weight
Package Box :	60pcs / box	-	15 Kgs
