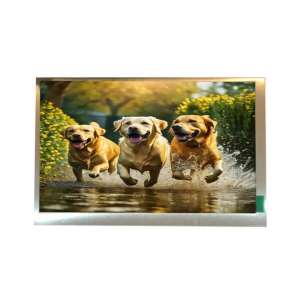

G070VAN01.1 AUO Original Factory 7 Inch TFT LCD Display 800x480 WVGA 30 Pins LVDS High Contrast 7 Inch LCD Panel Screen

G070VAN01 1 AUO Original Factory 7 Inch TFT LCD Display 800x480 WVGA 30 Pins LVDS High Contrast 7 Inch LCD Panel Screen LCD Modules

Model	G070VAN01.1
Brand	AUO
Size	7.0inch
Resolution	800*480
Brightness	200 cd/m² (Typ.)
Perspective	85/85/85/85
Interface	LVDS
Operating Temp	-20 ~ 70 °C
Production State	In Production

Click For Price

1、AUO G070VAN01.1 Application Details

Basic Information :	Brand	AUO	Model	G070VAN01.1
	Type	a-Si TFT-LCD , LCM	Used For	Industrial
	Screen Size	7.0 inch
Environment :	Storage Temp.	-30 ~ 80 °C	Operating Temp.	-20 ~ 70 °C
Environment :	RoHS	RoHS	Vibration	-
Typical Features :	Srgb,WLED Backlight,6/8 bit,Matte

2、AUO G070VAN01.1 Mechanical Details

Pixel Features :	Resolution	800*480(RGB), WVGA	Dot Pitch(mm)	0.19050.0635 (HV)
Pixel Features :	Pixel Format R	RGB Horizontal Stripe	Pixel Pitch(mm)	0.19050.1905 (HV) [133PPI]
Mechanical Size :	Active Area(mm)	152.4(H) *91.44(V)	Bezel Area(mm)	154.2(H)* 93.24(V)
Mechanical Size :	Outline Dim.(mm)	166.6(H) * 107(V)	Depth(mm)	7.0/10.0 (Typ./Max.)
Outline Features :	Form Style	Flat Rectangle	Shape Style
Outline Features :	Aspect Ratio	15:9 (H:V)	Orientation	Landscape type
Other Spec :	Weight	160g (Typ.)	Treatment	Antiglare

3、AUO G070VAN01.1 Optical Details

Basic Information :	Luminance(cd/m2;)	200 (Typ.)	Contrast Ratio	1300:1 (Typ.) (Transmissive)
	Viewing Angle	85/85/85/85 (Typ.)(CR≤10)	Display Mode	AHVA, Normally Black, Transmissive
	Best View on	Symmetry	Response(ms)	11/19 (Max.)(Tr/Td)
Color Performance :	White Coordinate	Wx:0.313; Wy:0.329	Display Colors	262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Uniformity	1.43 (Typ.)(9 points)
1931 Color Gamut :	NTSC Ratio	74%	sRGB	99% coverage
	Adobe RGB	76% coverage	DCI-P3	77% coverage
	Rec.2020	55% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

4、AUO G070VAN01.1 Electronics Details

Frame Rate :	60Hz
Reverse Scan :	No
Total Consumption :	1.4W (Max.)

5、AUO G070VAN01.1 Interface Details

Signal Electrical :	Voltage Supply	3.3V (Typ.)		Current Supply	0.14/0.20A (Typ./Max.)
Signal Type :	LVDS (1 ch, 6/8-bit)			Logic Voltage	-
Interface Features :	Position	-		Type	Connector
Interface Detail :	Brand	Model	Pitch	Pins	Quantity
Interface Detail :	STARCONN	093G30-00001A-M4	1.0 mm	30 pins	1 pcs

6、AUO G070VAN01.1 Backlight Details

Backlight Features :	Type	WLED	Quantity	7S2P	Position	Edge light type
Backlight Features :	Replacement	-	Shape	Array	Life Time	30K(Min.) Hours
Lamp Electrical :	Voltage Supply	21.0/23.1V (Typ./Max.)		Current Supply	32mA (Typ.)
Lamp Electrical :	Consumption	672mW (Typ.)
Interface Features :	Position	-		Type	Included in signal interface
Backlight Driver :	No

7、AUO G070VAN01.1 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	40 pcs / box	9.7 Kgs	520340250 mm (LWH)
