A070VTN06.4 Monitors 7 inch Resolution 800*480 Liquid Crystal Module tft lcd display

Supplier LCD Panel A070VTN06 4 Wholesale LCD Monitors 7 inch Resolution 800*480 Liquid Crystal Module tft lcd display

Model	A070VTN06.4
Brand	AUO
Size	7.0inch
Resolution	800*480
Brightness	500cd/m2
Perspective	75/75/55/65 (Typ.)
Interface	RGB
Operating Temp	-30 ~ 80 °C
Production State	In Production

Click For Price

1、AUO A070VTN06.4 Application Details

Basic Detail :	Manufacturer	AUO	Model Name	A070VTN06.4
	Panel Type	a-Si TFT-LCD , LCM	Model Alias
	Panel Size	7.0inch	Designed For	Automotive Display
Maximum Ratings :	OP Temperature	-30~ 80°C	ST Temperature	-30 ~ 80 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level
Features :	Wide Temperature,WLED Backlight ,Life>=50K hours, 6/8 bit, U/D/L/R Reverse，Matte

2、AUO A070VTN06.4 Optical Details

Basic Information :	Luminance	500cd/m2; (Typ.)	Contrast Ratio	500:1 (Typ.) (Transmissive)
	Good View at	6 o'clock	Response Speed	25 (Typ.)(Tr+Td) (ms)
	Viewing Angle	75/75/55/65 (Typ.)(CR≤10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.310; Wy:0.330	Support Color	262K/16.7M (6-bit / 6-bit + Dithering)
Color Performance :	Color Temperature	6638K	White Variation	1.30 (Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio	54%	sRGB	75% coverage
	Adobe RGB	65% coverage	DCI-P3	65% coverage
	Rec.2020	40% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

3、AUO A070VTN06.4 Mechanical Details

Pixel Features :	Number of Pixel	800(RGB)*480, WVGA			Arrangement	RGB Horizontal Stripe
	Dot Pitch(W×H)	0.0642*0.1790 mm			Pixel Pitch(W×H)	0.1926*0.1790 mm [134PPI]

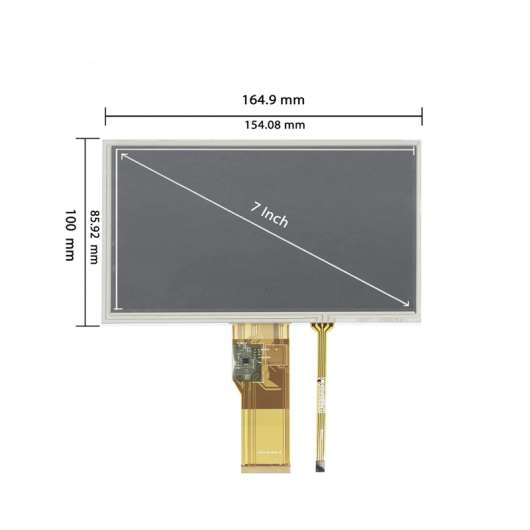

Physical Size :	Active Viewing(mm)	154.08(W)*85.92(H) mm			Outline Dim.(mm)	164.9(W)*100(H) mm
	Bezel Opening(mm)	154.2(H) * 93.24(V)			Overall Depth(mm)	5.7±0.2 mm
Outline Features :	Form Style		Flat Rectangle	Shape Style
	Aspect Ratio		16:9 (H:V)	Orientation			Landscape type
Mounting :	Without
Other Detail :	Weight	150±15g			Treatment	Antiglare, Hard coating (3H)

4、AUO A070VTN06.4 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	Yes (U/D, L/R)
Total Consumption :	1.86W (Max.)
Time Controller (T-CON) :	Embedded T-CON

5、AUO A070VTN06.4 Interface Detail

Signal Electrical :	Input Current	9.8/13.1/0.2/0.2mA (Typ.)(DIDD/AIDD/IGH/IGL)			Input Voltage	3.3/10.4/16/-7V (Typ.)(DVDD/AVDD/VGH/VGL)
	Consumption	-		Signal Interface			Parallel RGB (1 ch, 6/8-bit)
Logic Voltage for Signals :		0≤VIL≤0.3DVDD; 0.7DVDD≤VIH≤DVDD
Interface Features :	Position	-	Physical Type			FPC
Interface Detail :	Brand	Model	Pin Pitch		Pins	Amount	Pin Assignment
			0.5mm		50pins	1 pcs

6、AUO A070VTN06.4 Backlight Details

Lamp Features :	Lamp Type	WLED	Quantity		3S3P	Position		Edge light type
	Exchange	-	Lamp Shape		Array	Lamp Life		50K(Typ.) (Hours)
Lamp Electrical :	Input Voltage	9.3/10.2V (Typ./Max.)			Current Supply	54mA (Typ.)
	Consumption	1.66W (Max.)
Interface Features :	Position	-		Type			Included in panel signal interface
Backlight Driver :	No

7、AUO A070VTN06.4 Packing Details

Package Box :	Amount	Size (LW;H)	Weight
Package Box :	56pcs / box	520340250 mm	10.4Kgs
