A070VTN06.1 LCD Monitors 7 inch tft lcd display 800*480 Industrial Grade Display Panels Brand New Original

A070VTN06.1 LCD Monitors 7 inch tft lcd display 800*480 Industrial Grade Display Panels Brand New Original

A070VTN06 1 Wholesale LCD Monitors 7 inch tft lcd display 800*480 Industrial Grade Display Panels Brand New Original

Model A070VTN06.1
Brand AUO
Size 7.0inch
Resolution 800*480
Brightness 1250cd/m²
Perspective 60/60/40/60 (Typ.)
Interface RGB
Operating Temp -20 ~ 70 °C
Production State In Production

AUO A070VTN06.1 Application Details

Basic Detail :ManufacturerAUOModel NameA070VTN06.1
Panel Typea-Si TFT-LCD , LCMModel Alias
Panel Size7.0inchDesigned ForAutomotive Display
Maximum Ratings :OP Temperature-30 ~ 85  °CST Temperature-30 ~ 85 °C
RoHSRoHSVibration Level-
Features :Wide Temperature,Ultra High Brightness,U/D/L/R Reverse


AUO A070VTN06.1 Optical Details

Basic Information :Luminance1250cd/m2; (Typ.)Contrast Ratio500:1 (Typ.) (Transmissive)
Good View at6 o'clockResponse Speed25 (Typ.)(Tr+Td) ms
Viewing Angle60/60/40/60 (Typ.)(CR≤10)Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityWx:0.310; Wy:0.330Support Color65K
Color Temperature6638KWhite Variation1.25/1.43 (Typ./Max.)(9 points)
Dispaly Performance :Outdoor VisibilitySunlight ReadableTransmissivity-


AUO A070VTN06.1 Mechanical Details

Pixel Features :Number of Pixel800*480(RGB) [WVGA]ArrangementRGB Vertical Stripe
Dot Pitch(W×H)0.0642*0.1790 mmPixel Pitch(W×H)0.1926*0.1790 mm  [134PPI]
Physical Size :Active Viewing(mm)154.08(W)*85.92(H) mmOutline Dim.(mm)166.43(W)*102.2(H) mm
Bezel Opening(mm)157.29(W)*90.91(H) mmOverall Depth(mm)6.3±0.3 mm
Outline Features :Form StyleFlat RectangleShape Style
Aspect Ratio16:9 (H:V)OrientationLandscape type
Mounting :Without
Other Detail :WeightTBDTreatment-


AUO A070VTN06.1 Electronics Details

Refresh Rate :60Hz
Reverse Scan :Yes (U/D, L/R)
Time Controller (T-CON) :Embedded T-CON


AUO A070VTN06.1 Interface Detail

Signal Electrical :Input Current10.5/16/0.2/0.2mA (Typ.)(DIDD/AIDD/IGH/IGL)Input Voltage3.3/11/16/-7V (Typ.)(DVDD/AVDD/VGH/VGL)

Consumption-Signal InterfaceParallel RGB (1 ch, 4-bit)
Logic Voltage :0≤VIL≤0.3DVDD; 0.7DVDD≤VIH≤DVDD
Interface Features :Position-Physical TypeFPC
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment


0.3 mm51pins1 pcs


AUO A070VTN06.1 Backlight Details

Lamp Features :Lamp TypeWLEDAmount9S3PPositionEdge light type
Exchange-Lamp Shape3 stringsLamp Life10K(Min.) (Hours)
Lamp Electrical :Input Voltage26.55/29.7V (Typ./Max.)Current Supply195mA (Typ.)
Interface Features :Position-TypeIncluded in panel signal interface
Backlight Driver :No


AUO A070VTN06.1 Packing Details

Package Box :AmountSize (L*W*H)Weight
56pcs / box-11.29 Kgs



Name*
Your E-Mail*
Message*

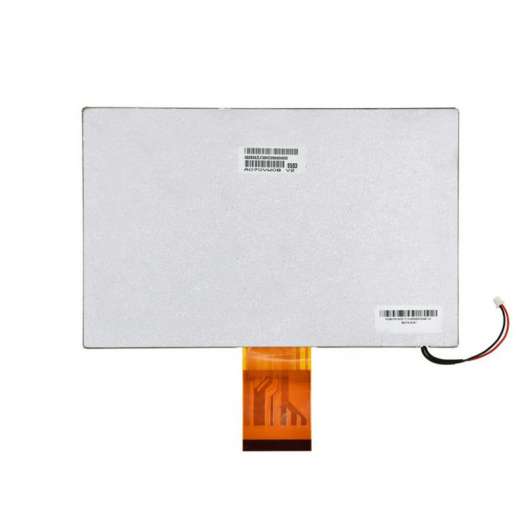

A070VW08 V2 AUO 7 inch 800x480 LCD screen panel 60pin TTL+SPI interface G070VW01 V012 Wholesale LCD Monitors 7 inch tft lcd display 800*480 Industrial Grade Display Panels Brand New Original
