G065VN01 V221 Industrial screen 6.5inch LVDS 20pin 640*480 VGA brand AUO high brightness outdoor display

G065VN01 V221 Industrial screen 6.5inch LVDS 20pin 640*480 VGA brand AUO high brightness outdoor display

G065VN01 V221 Industrial screen 6 5inch LVDS 20pin 640*480 VGA brand AUO high brightness outdoor display

Model G065VN01 V221
Brand AUO
Size 6.5inch
Resolution 640*480
Brightness 800cd/m2
Perspective 89/89/89/89
Interface LVDS
Operating Temp -30 ~ 85 °C
Production State In Production
Click For Price

1、AUO 6.5inch G065VN01 V221 Application Details

Basic Information :BrandAUOModelG065VN01 V221
Typea-Si TFT-LCD , LCMUsed ForIndustrial，Outdoor High Brightness
Screen Size6.5 inch

Environment :Storage Temp.-30 ~ 80  °COperating Temp.-30 ~ 80  °C
RoHSRoHSVibration1.5G (14.7 m/s²)
Typical Features :Wide Temperature，Hight Brightness，WLED Backlight，Life>=70K hours,With LED Driver,U/D,L/R Reverse,6/8 bit,Matte


2、AUO 6.5inch G065VN01 V221 Mechanical Details

Pixel Features :Resolution640(RGB)*480, VGA
Dot Pitch(mm)0.069*0.207 (H*V)
Pixel FormatRGB Vertical StripePixel Pitch(mm)0.207*0.207 (H*V)  [122PPI]

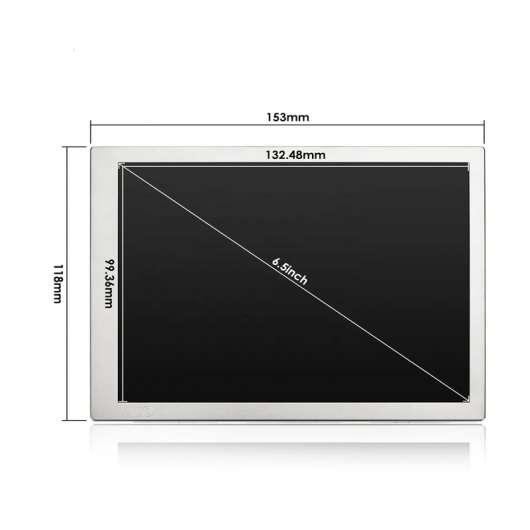

Mechanical Size :Active Area(mm)
 		132.48(H) *99.36(V)Bezel Area(mm)135.9(H) *102.8(V)
Outline Dim.(mm)153(H) *118(V)Depth(mm)10.9±0.3 mm
Outline Features :Form StyleFlat RectangleShape Style
Aspect Ratio4:3 (H:V)OrientationLandscape type
Mounting :Side mounting holes (4-M2); Rear mounting holes (4-M2.5)
Other Spec :WeightTBDTreatmentAntiglare, Hard coating (3H), Antireflection


3、AUO 6.5inch G065VN01 V221 Optical Details

Basic Information :Luminance(cd/m2)800 (Typ.)Contrast Ratio1000:1 (Typ.) (Transmissive)
Viewing Angle89/89/89/89 (Typ.)Display ModeAHVA, Normally Black, Transmissive
Best View onSymmetryResponse(ms)10/15 (Typ.)(Tr/Td)
Color Performance :White Coordinate Wx:0.313; Wy:0.329Display Colors262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature6485KWhite Uniformity 1.25 (Max.)(5 points)
Dispaly Performance :Outdoor VisibilitySunlight ReadableTransmissivity-


 4、AUO 6.5inch G065VN01 V221 Electronics Details

Frame Rate :60Hz
Reverse Scan :Yes (U/D, L/R)
Total Consumption :2.4W (Typ.)


5、AUO 6.5inch G065VN01 V221 Interface Details

Signal Electrical :Voltage Supply3.3V (Typ.)Current Supply120/133mA (Typ./Max.)
Consumption0.4W (Typ.)
Signal Type :LVDS (1 ch, 6/8-bit)Logic Voltage-
Interface Features :Position-
TypeConnector
Interface Detail :BrandModelPitchPinsQuantityPin Configuration
STMMSB24013P201.0 mm20 pins1 pcsLVDS-20P1C8B-100A


6、AUO 6.5inch G065VN01 V221 Backlight Details

Backlight Features :TypeWLEDQuantity-PositionEdge light type (Bottom side)
Replacement-Shape-Life Time70K(Min.) Hours
Interface Features :Position-
TypeConnector
Interface Detail :BrandModelPitchPinsQuantityPin Configuration
STMMS24016RHD1.25 mm6 pins1 pcs
Backlight Driver :With LED Driver
Driver Electrical :Voltage Supply9/12/13V (Min./Typ./Max.)Current Supply0.167A (Typ.)
Consumption2.0W (Typ.)


7、AUO 6.5inch G065VN01 V221 Packing Details

Package Box :QuantityWeightBox Size
80 pcs / box16.6 Kgs 425*386*430 mm (L*W*H)
