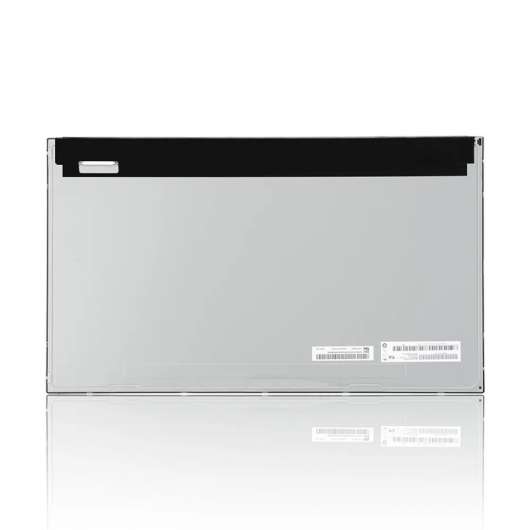

1、AUO G215HAN01 7 Application DetailsBasic Detail :ManufacturerAUOModel NameG215HAN01 7Panel Typea-Si TFT-LCD , LCMPane
| Model | G215HAN01.7 |
| Brand | AUO |
| Size | 21.5inch |
| Resolution | 1920*1080 |
| Brightness | 350cd/m² |
| Perspective | 89/89/89/89 |
| Interface | LVDS |
| Operating Temp | 0 ~ 50 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1、AUO G215HAN01.7 Application Details
Basic Detail :
Manufacturer
AUO
Model Name
G215HAN01.7
Panel Type
a-Si TFT-LCD , LCM
Panel Size
21.5 inch
Designed For
Industrial，Medical Imaging
Maximum Ratings :
OP Temperature
0 ~ 50 °C
ST Temperature
-20 ~ 60 °C
Vibration Rating
1.5G (14.7 m/s²)
RoHS
RoHS
Features :
WLED Backlight， Matte
2、AUO G215HAN01.7 Optical Details
Basic Information :
Luminance
350 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
12/10 (Typ.)(Tr/Td) ms
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Operating Mode
AHVA, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
16.7M (6-bit + Hi-FRC)
Color Temperature
6485K
Uniformity
1.25/1.33 (Typ./Max.)(9 points)
3、AUO G215HAN01.7 Mechanical Details
Pixel Features :
Number of Pixel
1920(RGB)×1080, FHD
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.08265×0.24795 mm (H×V)
Pixel Pitch(W×H)
0.24795×0.24795 mm (H×V) [102PPI]
Mechanical Size :
Display Area
476.064×267.786 mm (H×V)
Bezel Area
495.6×292.2mm (H×V)
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style
Other Features :
Weight
-
Surface
Antiglare, Hard coating (3H)
4、AUO G215HAN01.7 Electronics Details
Frame Frequency :
60Hz
Reverse Scan :
No
5、AUO G215HAN01.7 Backlight Details
Back-light Features:
Lamp Shape
-
Lamp Type
WLED
Life Time
30K(Min.) (Hours)
Replacement
-
Amount
-
Position
Edge light type
Interface Features :
Type
Position
-
Lamp Driver
No
6、AUO G215HAN01.7 Interface Details
Signal Systerm :
LVDS (2 ch, 8-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
5.0V (Typ.)
Current Input
-
Consumption
-
Interface Features :
Type
Connector
Position
-
