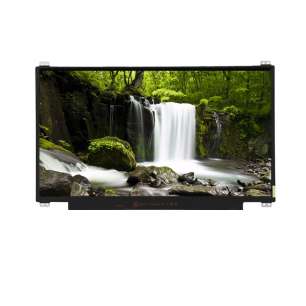

Industrial AUO 13.3 inch IPS TFT LCD Display G133ZAN01.1 with 3840x2160 UHD

Industrial AUO 13 3 inch IPS TFT LCD Display G133ZAN01 1 with 3840x2160 UHD

Model	G133ZAN01.1
Brand	AUO
Size	13.3inch
Resolution	3840*2160
Brightness	450cd/m2
Perspective	85/85/85/85
Interface	eDP
Operating Temp	0 ~ 50 °C
Production State	In Production

Click For Price

AUO G133ZAN01.1 Application Details

Basic Info :	Panel Brand	AUO	Panel Model	G133ZAN01.1
	Diagonal Size	13.3 inch	Application	Industrial
	Panel Type	LTPS TFT-LCD ,LCM
Reliability :	Operating Temp.	0 ~ 50 °C	Storage Temp.	-20 ~ 60 °C
Reliability :	RoHS State	RoHS	Vibration Rating	1.5G (14.7 m/s²)
Specific Features :	Srgb, WLED Backlight，Life>=50K hours,With LED Driver，Reverse I/F,10 bit，Glossy

AUO G133ZAN01.1 Mechanical Details

Pixel Features :	Pixel Format	3840(RGB)*2160 [UHD]	Dot Pitch	0.02550.0765 mm (HV)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.07650.0765 mm (HV) [332PPI]
Mechanical Size :	Display Area	293.76165.24 mm (HV)	Outline Dim (mm).	-
Mechanical Size :	Outline Dim.	298.96186.42 mm (HV)	Outline Depth (mm)	2.0/2.2 (Max.) mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	16:9 (H:V)	Shape Style
Holes & Brackets :	Without
Other Features :	Weight	190g (Max.)	Surface	Glare (Haze 0%), Hard coating (1H), Reflection 5.0% (Typ.)

AUO G133ZAN01.1 Optical Details

Brightness	Brightness	450 cd/m² (Typ.)	Contrast Ratio	1200:1 (Typ.) (Transmissive)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Optical Mode	AHVA, Normally Black, Transmissive
	Viewing Direction	Symmetry	Response Time	30 (Typ.)(Tr+Td) (ms)
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Color Numbers	1.07B (8-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	Uniformity	1.25/1.60 (Max.)(5/13 point
1931 Color Gamut :	NTSC Ratio	71%	sRGB	100% coverage
	Adobe RGB	74% coverage	DCI-P3	74% coverage
	Rec.2020	53% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO G133ZAN01.1 Electronics Details

Frame Frequency :	60Hz
Reverse Scan :	No
Power Consumption :	5.39W

AUO G133ZAN01.1 Backlight Details

Back-light Features :	Lamp Type	WLED	Amount	-	Life Time	30K(Min.) (Hours)
Back-light Features :	Replacement	-	Lamp Shape	-	Position	Edge light type
Interface Features :	Type	Included in signal interface	Position	-	Lamp Driver	With LED Driver
Driver Electrical :	Voltage Input	5.0/12.0/21.0V (Min./Typ./Max.)	Current Input		-
Driver Electrical :	Consumption	3.95W (Max.)

AUO G133ZAN01.1 Interface Details

Signal Systerm :	eDP (4 Lanes), eDP1.4a						Logic Voltage		-
Signal Electrical :	Voltage Input		3.3V (Typ.)				Current Input		800mA (Max.)
	Consumption		1.44/2.4W (Typ./Max.)
Interface Features :	Type		Connector		Position				Right of Board
Connector Detail :	Brand	Model		Pin Pitch		Pins		Amount		Configuration
	I-PEX	20765-040E-11A		0.5mm		40 pins		1 pcs
