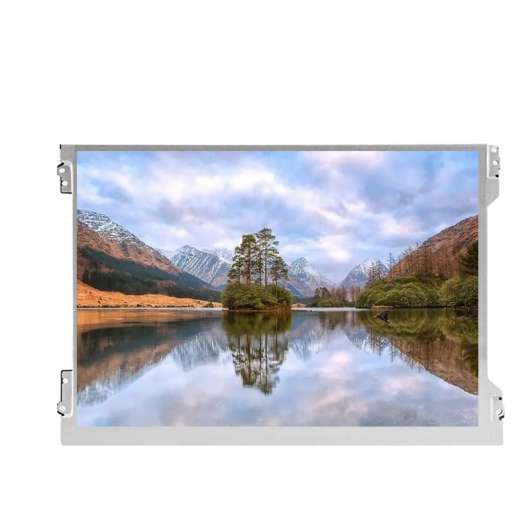

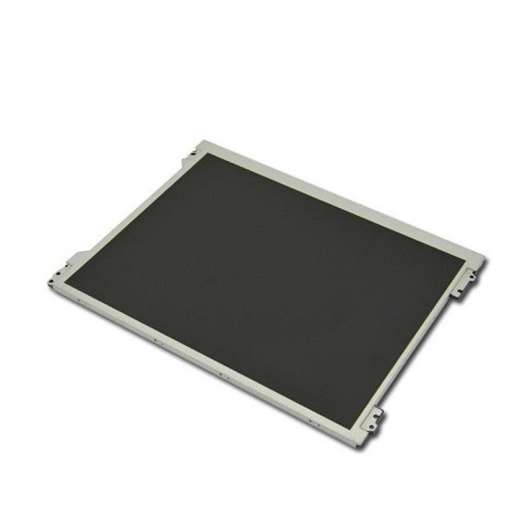

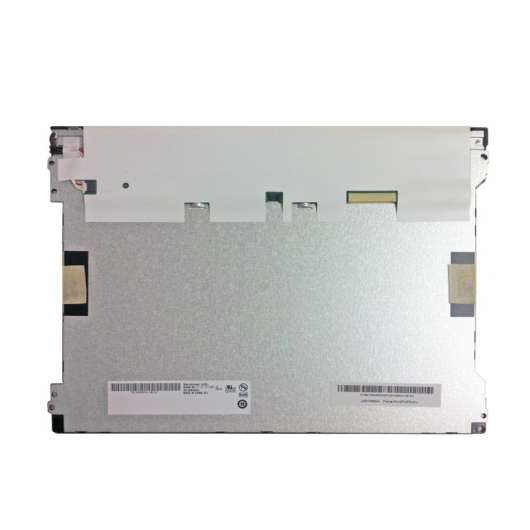

G121XTN01.0 AUO 12.1 LCD TFT LCD Display Screen Panel Wide Temperature 121 Inch LCD Modules

G121XTN01 0 AUO 12 1 inch 1024x768 lcd panel Backlight 500nits LVDS panel applie

Model	G121XTN01.0
Brand	AUO
Size	12.1inch
Resolution	1024*768
Brightness	500cd/m2
Perspective	80/80/80/80
Interface	LVDS
Operating Temp	-30 ~ 85 °C
Production State	Discontinued

Click For Price

1、AUO G121XTN01.0 Application Details

Basic Detail :	Manufacturer	AUO	Model Name	G121XTN01.0
	Panel Type	a-Si TFT-LCD , LCM	Model Alias
	Panel Size	12.1inch	Designed For	Idustrial
Maximum Ratings :	OP Temperature	-30 ~ 85 °C	ST Temperature	-30 ~ 85 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level	1.5G (14.7 m/s²)
Features :	Wide Temperature，Lamp Repaceable，WLED Backlight，Life>=50K hours,With LED Driver,Upside I/F,180°Reverse，Matte,6/8 bit

2、AUO G121XTN01.0 Optical Details

Basic Information :	Luminance	500 cd/m² (Typ.)	Contrast Ratio	700:1 (Typ.) (Transmissive)
	Good View at	-	Response Speed	25/10 (Typ.)(Tr/Td) ms
	Viewing Angle	80/80/80/80 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.310; Wy:0.330	Support Color	262K/16.2M (6-bit / 6-bit + FRC)
Color Performance :	Color Temperature	6638K	White Variation	1.33 (Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio	72%	sRGB	92% coverage
	Adobe RGB	72% coverage	DCI-P3	75% coverage
	Rec.2020	54% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

3、AUO G121XTN01.0 Mechanical Details

Pixel Features :	Number of Pixel	1024(2)*768(2), XGA			Arrangement	RGBW Rectangle
	Dot Pitch(W*H)	0.120*0.120 mm			Pixel Pitch(W*H)	0.240*0.240 mm [105PPI]
Physical Size :	Active Viewing(mm)	245.76(W)*184.32(H) mm			Outline Dim.(mm)	279(W)*209(H) mm
	Bezel Area(mm)	250.8(W)*188.4(H) mm			Depth(mm)	9.0 (Max.) mm
Outline Features :	Form Style	Flat Rectangle			Outline Shape
	Aspect Ratio	4:3 (H:V)			Orientation	Landscape type
Mounting :	Face mounting holes (4-Φ3.4, 3-R1.7) on left and right bezel
Other Spec :	Weight		495g (Max.)	Treatment			Antiglare, Hard coating (3H)

4、AUO G121XTN01.0 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	Yes (180°)
Total Consumption :	5.31W (Typ.)

5、AUO G121XTN01.0 Interface Detail

Signal Electrical :	Voltage Supply	3.3V (Typ.)		Current Supply	590/710mA (Typ./Max.)
Signal Electrical :	Consumption	1.95/2.34W (Typ./Max.)		Signal Interface	LVDS (1 ch, 6/8-bit)
Interface Features :	Position	Rear		Type	Connector
Interface Detail :	Brand	Model	Pitch	Pins	Quantity	Pin Configuration
Interface Detail :	STM	MSB240420E	1.25 mm	20 pins	1 pcs	LVDS-20P1C8B-080B

6、AUO G121XTN01.0 Backlight Details

Lamp Features :

Lamp Type

WLED

Quantity

6S3P

Position

Edge light type (Bottom side)

Exchange

Replaceable

Lamp Shape

3 strings

Lamp Life

50K(Min.) (Hours)

Lamp Electrical :

Input Voltage

19.2/21.6V (Typ./Max.)

Input Current

50mA (Typ.)

Consumption

2.88/3.24W (Typ./Max.)

Interface Features :

Position

Physical Type

Connector

Interface Detail :

Brand

Model

Pitch

Pins

Quantity

Pin Configuration

E&T

3808K-F05N-12R

1.25 mm

5 pins

1 pcs

Backlight Driver :

With LED Driver

Driver Electrical :

Voltage Supply

10.8/12.0/12.6V (Min./Typ./Max.)

Current Supply

280mA (Typ.)

Consumption

3.36/4.2W (Typ./Max.)

7、AUO G121XTN01.0 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	20 pcs / box	14.8 Kgs	570320420 mm mm (LWH)
