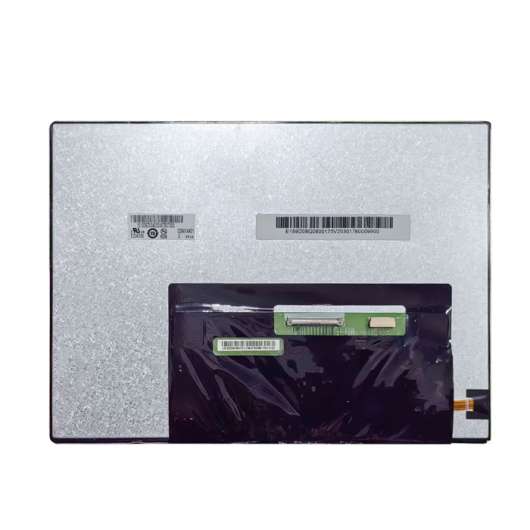

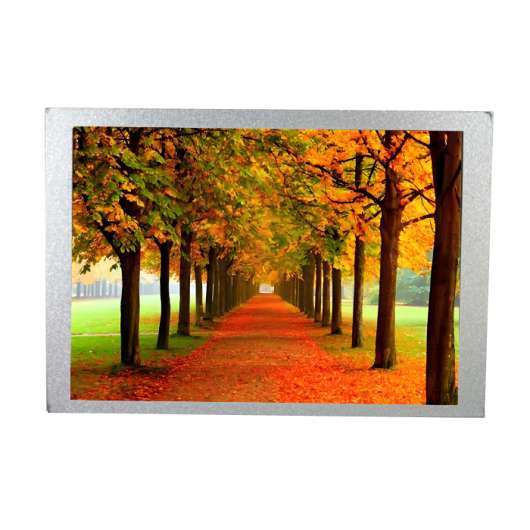

AUO 8 4-inch TFT LCD delivers 700cd m² sunlight readability, -30℃~80℃ operation, and 178° viewing angle IP67-rated for rugged applications in medical imaging, construction machinery & railway systems Request samples datasheet
| Model | G084XAN01.0 |
| Brand | AUO |
| Size | 8.4inch |
| Resolution | 1024*768 |
| Brightness | 700cd/m2 |
| Perspective | 89/89/89/89 |
| Interface | LVDS |
| Operating Temp | -30 ~ 80 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1、 AUO G084XAN01.0 Application Details
Basic Information :
Brand
AUO
Model
G084XAN01.0
Type
LCM a-Si TFT-LCD
Used For
Industrial，Outdoor High Brightness
Screen Size
8.4"
Environment :
Storage Temp.
-30 ~ 85 °C
Operating Temp.
-30 ~~ 80 °C
RoHS
RoHS
Vibration
1.5G (14.7 m/s²)
Typical Features :
Srgb,Wide Temperature，Hight Brightness，WLED Backlight，Life>=70K hours,With LED Driver,U/D,L/R Reverse,6/8 bit,Matte
2、AUO G084XAN01.0 Mechanical Details
Pixel Features :
Resolution
1024(RGB)×768, XGA
Dot Pitch(mm)
-
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.166×0.166 (H×V) [152PPI]
Mechanical Size :
Active Area(mm)
170.496(H) × 127.872(V)
Bezel Area(mm)
173.75(H) × 132.18(V)
Outline Dim.(mm)
199.5(H) × 149(V)
Depth(mm)
5.98/9.55 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Outline Shape
Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Mounting :
Without
Other Spec :
Weight
282/310g (Typ./Max.)
Treatment
Antiglare
3、AUO G084XAN01.0 Optical Details
Basic Information :
Luminance(cd/m²)
700 (Typ.)
Contrast Ratio
800:1 (Min.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
AHVA, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
15/10 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
X:0.310; Y:0.330
Display Colors
262K/16.7M (6-bit / 8-bit)
Color Temperature
6638K
White Uniformity
1.25/1.33 (Typ./Max.)( 5 points)
1931 Color Gamut :
NTSC Ratio
74%
sRGB
99% coverage
Adobe RGB
76% coverage
DCI-P3
77% coverage
Rec.2020
55% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmissivity
-
4、AUO G084XAN01.0 Electronics Details
Frame Rate :
60Hz
Reverse Scan :
Yes (U/D, L/R)
Power Consumption :
5.3W (Typ.)
5、AUO G084XAN01.0 Interface Details
Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
150/220mA (Typ./Max.)
Consumption
0.5/0.73W (Typ./Max.)
Signal Type :
LVDS (1 ch, 6/8-bit)
Signal Voltage
-
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Quantity
Pins
Pitch
Pin Configuration
I-PEX
20765-040E-11A
1 pcs
40 pins
0.5 mm
6、AUO G084XAN01.0 Backlight Details
Backlight Features:
Shape
-
Type
WLED
Position
Edge light type
Replacement
-
Quantity
-
Life Time
70K(Min.) (Hours)
Lamp Electrical :
Voltage Supply
-
Current Supply
51.8mA (Typ.)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Quantity
Pins
Pitch
Pin Configuration
JAE
FI-S6P-HFE
1 pcs
6 pins
1.25 mm
Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
12.0±1.2V
Current Supply
0.4A (Typ.)
Consumption
4.8W (Typ.)
7、AUO G084XAN01.0 Packing Details
Package Box :
Quantity
Weight
Box Size
22 pcs / box
-
528×348×265 mm (L×W×H)
