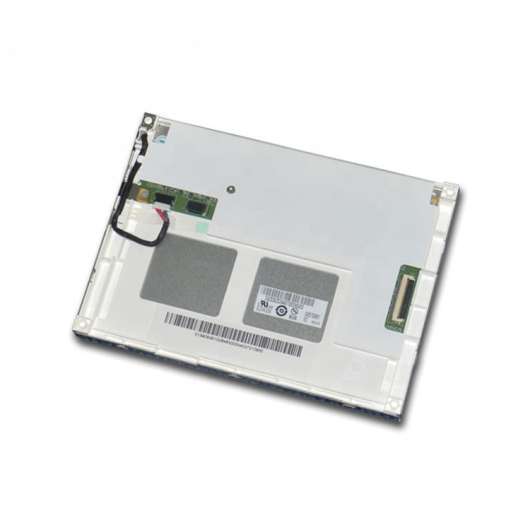

AUO s G057QAN01 1 5 7 " industrial LCD features 800+nits high brightness, -30°C to 85°C operation, and 178° full viewing angle Certified solution for HMI, medical devices & outdoor equipment Request technical specs datasheet
| Model | G057QAN01.1 |
| Brand | AUO |
| Size | 5.7inch |
| Resolution | 320*240 |
| Brightness | 800 cd/m² (Typ.) |
| Perspective | 89/89/89/89 |
| Interface | CMOS |
| Operating Temp | -30 ~ 85 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1.AUO G057QAN01.1 Application Features
Basic Information :
Manufacturer
AUO
Panel Model
G057QAN01.1
Panel Type
a-Si TFT-LCD , LCM
Environment :
Operating Temp.
-30 ~ 85 °C
Storage Temp.
-30 ~ 85 °C
RoHS State
RoHS
Used For :
Industrial
Specific Features :
Wide Temperature，Hight Brightness，WLED Backlight，Life≥50K hours，With LED Driver，U/D,L/R Reverse，Matte
2.AUO G057QAN01.1 Mechanical Features
Panel Size :
5.7"
Pixel Features :
Pixel Format
320(RGB)×240 [QVGA]
Pixel Configuration
RGB Vertical Stripe
Pixel Pitch (mm)
0.36×0.36 [70PPI]
Dot Pitch (mm)
0.12×0.36
Mechanical Size :
Active Area (mm)
115.2(H) × 86.4(V)
Bezel Area (mm)
118.2(H) × 89.4(V)
Outline Dimension (mm)
144(H) × 104.6(V)
Outline Depth
12.8 (Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
-
Aspect Ratio
4:3 (H:V)
Shape Style
Mounting :
Rear mounting holes
Other Detail :
Treatment
Antiglare, Hard coating (3H)
Weight
150/165g (Typ./Max.)
Panel Cover
-
3. AUO G057QAN01.1 Optical Features
Basic Information :
Luminance (cd/m²)
800 (Typ.)
Response Time
15/10 (Typ.)(Tr/Td)(ms)
Viewing Angle (L/R/U/D)
89/89/89/89 (Typ.)(CR≥10)
Best View on
Symmetry
Display Mode
AHVA, Normally Black, Transmissive
Contrast Ratio
1000 : 1 (Typ.) (Transmissive)
Dispaly Color :
Color Temperature
6485K
Display Colors
262K (6-bit)
White Coordinate
X:0.313; Y:0.329
4. AUO G057QAN01.1 Electronics Features
Reverse Scan :
Yes (U/D, L/R)
Vertical Frequency :
60Hz
Power Consumption :
2.21W (Typ.)
5. AUO G057QAN01.1 Backlight Features
Lamp Features:
Type
Position
Quantity
Shape
Life(Hours)
Lamp Exchange
WLED
Edge light type
-
-
50K(Min.)
-
WLED Electrical
Voltage Supply
Current Supply
Power
22.4/23.6/24.8V (Min./Typ./Max.)
80mA (Typ.)
Interface Features :
Position
Backlight Driver
Type
-
With LED Driver
Connector
Interface Detail :
Brand
Model
Pin Pitch
Pin Amount
Quantity
Configuration
CviLux
CI1106M1HR0-NH
1.0 mm
6 pins
1 pcs
Driver Electrical :
Voltage Supply
Current Supply
Power Consumption
9.0/12.0/20.0V (Min./Typ./Max.)
0.15/0.16A (Typ./Max.)
2.12/2.23W (Typ./Max.)
6. AUO G057QAN01.1 Interface Features
Panel Driving Electrical :
Voltage Supply
Current Supply
Power
3.3V (Typ.)
27/30mA (Typ./Max.)
0.09/0.10W (Typ./Max.)
Voltage for Display Signals :
0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Interface Features :
Position
Signal
Type
-
CMOS (1 ch, 6-bit)
Connector
Connector Detail :
Brand
Model
Pin Pitch
Pin Amount
Quantity
Configuration
STARCONN
089H33-000100-G2-R
0.5 mm
33 pins
1 pcs
7. AUO G057QAN01.1 Packing Features
Package Type
Pcs/Package
Box/Package
Package LWH (mm)
G.W (kgs)
Volume (m³)
Carton
60
1
520×340×250
12.95
0.0442
