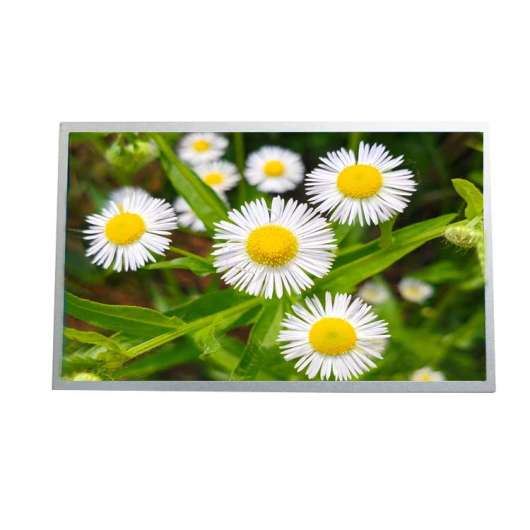

500cd m² FHD industrial display with -20°C~70°C wide temperature AUO G156HAN02 303 LCD panel supplier, fully compatible with G156HAN02 302 Global shipping & technical support
| Model | G156HAN02.303 |
| Brand | AUO |
| Size | 15.6inch |
| Resolution | 1920*1080 |
| Brightness | 500cd/m2 |
| Perspective | 89/89/89/89 |
| Interface | LVDS |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1. AUO G156HAN02.303 Application Details
Basic Information :
Brand
AUO
Model
G156HAN02.303
Type
a-Si TFT-LCD , LCM
Used For
Industrial，Healthcare
Screen Size
15.6"
Environment :
Storage Temp.
-20 ~ 70 °C
Operating Temp.
-20 ~ 70 °C
RoHS
RoHS
Vibration
1.5G (14.7 m/s²)
Typical Features :
Srgb,WLED Backlight，Life≥50K hours，With LED Driver，Reverse I/F,Matte
2. AUO G156HAN02.303 Mechanical Details
Pixel Features :
Resolution
1920(RGB)×1080, FHD
Dot Pitch(mm)
0.05975×0.17925 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.17925×0.17925 (H×V) [141PPI]
Mechanical Size :
Active Area(mm)
344.16(H) × 193.59(V)
Bezel Area(mm)
347.06(H) × 196.49(V)
Outline Dim.(mm)
363.8(H) × 215.9(V)
Depth(mm)
8.8±0.5
Outline Features :
Form Style
Flat Rectangle
Shape Style
-
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Side mounting holes (4-M3) on left, right bezel
Other Spec :
Weight
660g (Max.)
Treatment
Antiglare, Hard coating (3H)
3. AUO G156HAN02.303 Optical Details
Basic Information :
Luminance
500 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
AHVA, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
25 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.7M (8-bit)
Color Temperature
6485K
White Uniformity
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
75%
sRGB
100%
Adobe RGB
77% coverage
DCI-P3
78%
Rec.2020
56% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
4. AUO G156HAN02.303 Electronics Details
Frame Rate :
60Hz
Reverse Scan :
No
Total Consumption :
11.59W (Typ.)
5. AUO G156HAN02.303 Interface Details
Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
0.53/0.64A (Typ./Max.)
Consumption
1.75/2.11W (Typ./Max.)
Signal Type :
LVDS (2 ch, 8-bit)
Logic Voltage
-
Interface Features :
Position
Down
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
P-TWO
187034-30091
1.0 mm
30 pins
1 pcs
LVDS-30P2C8B-160A
6. AUO G156HAN02.303 Backlight Details
Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
50K(Min.) Hours
Interface Features :
Position
Down right corner
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
STM
MSB24038P5D
1.25 mm
5 pins
1pcs
Backlight Driver :
With LED Driver
Driver Electrical :
Driver Electrical :
12.0±1.2V
Current Supply
-
Consumption
9.84/10.44W (Typ./Max.)
7. AUO G156HAN02.303 Carton Details
Package Type
Pcs/Package
Package LWH (mm)
G.W (kgs)
16
450×375×319
13.20
