G065VN01 V2 EC notice
G065VN01 V2 EC notice，The upgraded model of G065VN01 V2 is G065VN01 V221, which has the same size and structure as G065VN01 V2 and can be directly replaced
G065VN01 V2 EC notice
＊Purpose : Since the Driver IC are moving to EOL, ADP will launch a new cell with new IC solution for longevity support.
＊With new IC and cell, new product specification needs to be changed as below.
1) Display Characteristics
2)Optical Characteristics
3)Functional Block Diagram
4)Electrical Characteristics
5)Backlight Unit Driving
6)Power ON/OFF Sequence
7)Connector
8)Mechanical Characteristics
9)Protection Film Change
＊Schedule :
Verification sample will come out by 2022/8/B
RA report will be provided by 2022/10/M
Customer Approval: 2023/1/B.
Phase in : 2023/5/B.
Items | Before (97.06G01.211) | After (97D06G01.221) |
Gate IC | NT39207 (Novatek) | ST5043DA (Sitronix) |
Source IC | NT39606H-D/3 (Novatek) | ST5891DA (Sitronix) |
LED driver IC | RT8560GQW (Richtek) | RT4527AGQW (Richtek) |
General Display Characteristics
Optical Characteristics
Functional Block Diagram
Electrical Characteristics
Due to the the new IC characteristics, VDD current, VDD power and Input Differential Voltage need to be changed.
Backlight Unit Driving
Power ON/OFF Sequence

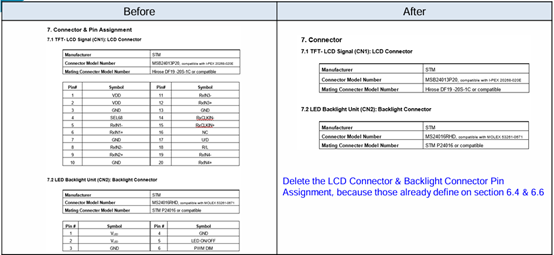

Connector
Mechanical Characteristics
Label and Packaging
The upgraded model of G065VN01 V2 is G065VN01 V221, which has the same size and structure as G065VN01 V2 and can be directly replaced
