G104VAN01.0 and G104VN01 V1 Spec comparison
Considering product strategy, ADP would like to deliver EOL notice of G104VN01 1 ，For replace G104VN01 1, ADP will launch a new model G104VAN01 0
G104VAN01.0 Proposal & Specification Comparison
G104VAN01.0 Proposal for G104VN01 V1 Longevity Supply
• Purpose : Considering product strategy, ADP would like to deliver EOL notice of G104VN01.1 (ADP part no. : 97D10G04.111).
• For replace G104VN01.1, ADP will launch a new model G104VAN01.0 (ADP part no. : 97D10G42.000)
Key change items :
• Change Cell from TN to AHVA (IPS-like) and front-end fab from G3 to G5
• Change Gate & Source driver IC model • Change PCBA for new mode and new IC
• Change Color / Chromaticity (Red x y, Green x y, Blue x y).
• Change Backlight (From A vendor to B vendor)
• Change Pol type from TN to AHVA (IPS-like)
• Add a Connector for ADP internal use
G104VN01 V1 vs. G104VAN01.0 Brief Summary
G104VN01 V1 & G104VAN01.0 spec comparison
• Display characteristics is similar with G104VN01 V1
• Expected reduce about 36% power consumption (5.2W to 3.33W)
• Blue letter value with parentheses is accumulated value, the accurate values need to measure with first sample.
• Bring the better viewing angle and contrast ratio performance.
• Color coordinates had adjusted.
• The LED forward current had decrease from 80mA/ 1LED to 48mA/ 1LED.
• Blue letter value with parentheses is accumulated value, the accurate values need to measure with first sample.

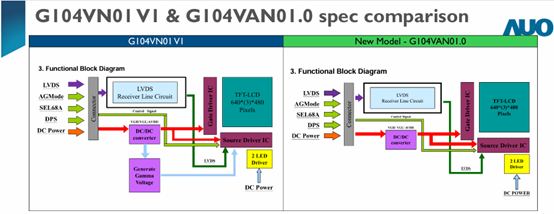

• The Gamma Voltage is expected to combined into Source Drive IC.
• The Gamma Voltage is expected to combined into Source Drive IC.
• LCD Power consumption is increase. Nevertheless, the total power consumption is decrease.
Note 1: This value is accumulated value, the accurate values need to measure with first sample.

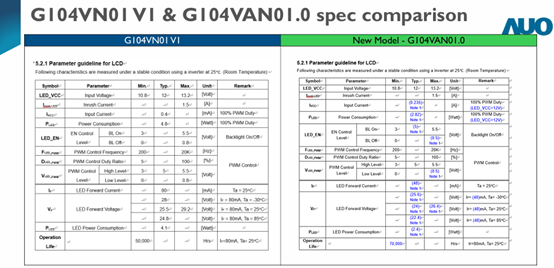

• Keep the same signal electrical characteristics
• LED combination keep 2 series 8 parallel.
• Power consumption of backlight unit had decrease.
Note 1is accumulated value, the accurate values need to measure with first sample.

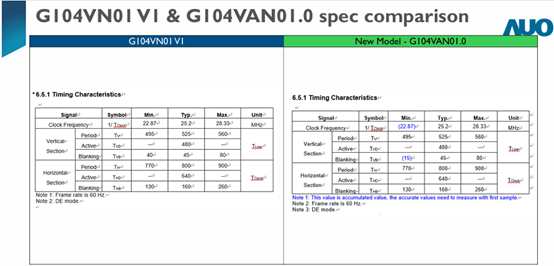

• The clock frequency of G104VAN01.0is same with G104VN01 V1.
• G104VAN01.0 keep the same pin assignment with G104VN01 V1
• G104VAN01.0 keep the same connector & pin assignment with G104VN01 V1.
• G104VAN01.0 keep the same connector & pin assignment with G104VN01 V1.
• G104VAN01.0 keep the same connector & pin assignment with G104VN01 V1.
• G104VAN01.0 keep the same Reliability Test with G104VN01 V1.

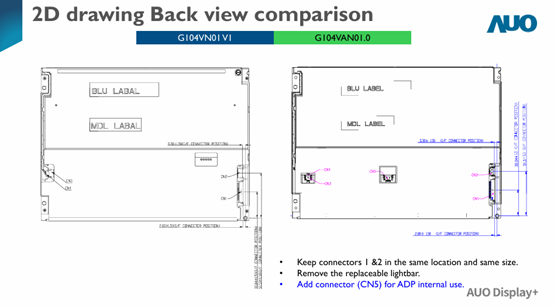

• G104VAN01.0 keep the same overall dimensions(243mm x 176.6mm x 8mm) with G104VN01.111.
• Keep Active Area (211.2mm x 158.4mm) in same size and same location.
• The mounting hole also keep in same size and same location.
• Keep the thickness as 8mm.
• Blue frame is the CN5 for ADP internal use.
• The material of Front Bezel and Back Bezel change to SGLC.
