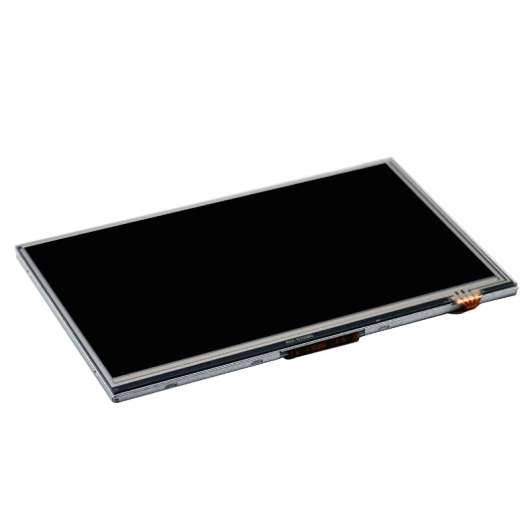

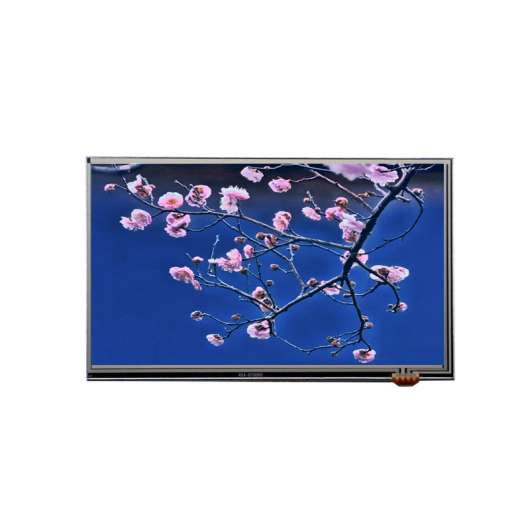

7.0-inch full view IPS LCD screen with resistive touch screen - IDT-G070BAHA-09P

The IDT-G070BAHA-09P is a 7 0-inch full view IPS LCD screen with a resistive touch screen, IPS display mode, wide viewing angle, high contrast, resolution of 1024 * 600, brightness of 400cd m2, supporting LVDS 8BIT communication interface, and can be used for label printers and inkjet printers

Model	IDT-G070BAHA-09P
Brand	IDT
Size	7.0inch
Resolution	1024*600
Brightness	400cd/m2
Perspective	80/80/80/80
Interface	LVDS
Operating Temp	-20 ~ 70 °C
Production State	In Production

Click For Price

Feature	Specification
Model	IDT-G070BAHA-09P
Brand	IDT
Size	7.0inch
Resolution	1024 x 600
Pixel pitch	0.1506(H)×0.1432(V)mm
Display Mode	IPS/NB
Viewing Direction	ALL o'clock
Gray Scale Inversion Direction	ALL o'clock
Luminance	400 cd/m2
LCM (W * H * D)	164.8099.807.15 mm
Active Area (W * H )	154.21*85.92mm
With /Without TP	With RTP
LED Numbers	3S10P-LED
Operation temperature	-20~+70℃
Storage temperature	-30~+80℃
Interface	8BIT LVDS
LCM Power Supply	3.3V
LED Power Supply	9.0V
LCM Driver IC	HX8282+HX8696
Display color	16.7M
