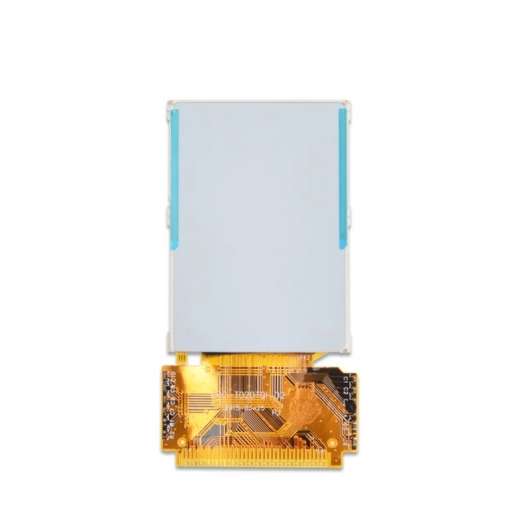

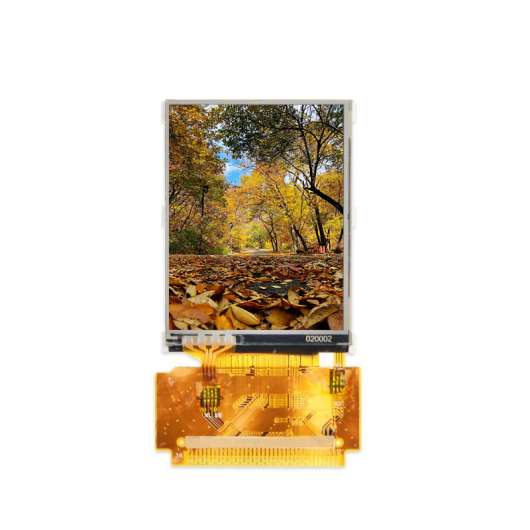

IDT-G020TQI-02P is a 2 0-inch LCD screen with resistive touch, resolution of 240 * 320, brightness of 130cd m2, suitable for outdoor handheld use
| Model | IDT-G020TQI-02P |
| Brand | IDT |
| Size | 2.0inch |
| Resolution | 240*320 |
| Brightness | 130cd/m² |
| Perspective | 9 o'clock |
| Interface | MCU |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
Feature
Specification
Model
IDT-G020TQI-02P
Brand
IDT
Size
2.0inch
Resolution
240*320
Pixel pitch
0.126(H)*0.126(V)mm
Display Mode
TN/NW
Viewing Direction
9 o'clock
Gray Scale Inversion Direction
3 o'clock
Luminance
130 cd/m2
LCM (W * H * D)
36.80*48.20*3.75 mm
Active Area (W * H )
30.24*40.32 mm
With /Without TP
Yes
LED Numbers
2P-LED
Operation temperature
-20~+70℃
Storage temperature
-30~+80℃
Interface
MCU-8/16bit/36PIN
LCM Power Supply
2.8V
LED Power Supply
3.0V
Color Depth
262K
LCM Driver IC
ILI9335
