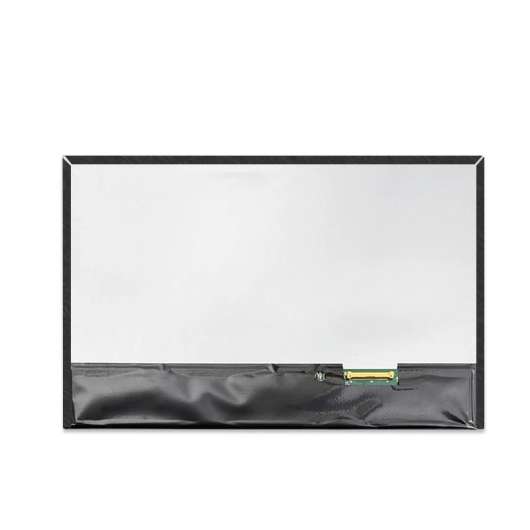

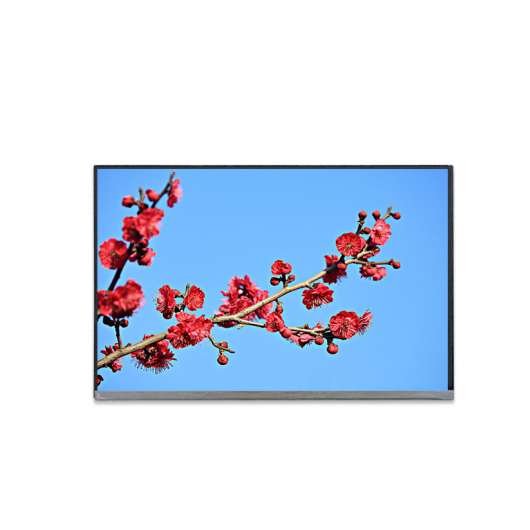

IDT-G101BFH-01 is a 10 1-inch full view IPS LCD screen with IPS display mode, wide viewing angle, high contrast, resolution of 1920 * 1200, brightness of 300cd m2, supports LVDS communication interface, and can be used for white goods and smart life
| Model | IDT-G101BFH-01 |
| Brand | IDT |
| Size | 10.1inch |
| Resolution | 1920*1200 |
| Brightness | 300cd/m² |
| Perspective | 80/80/80/80 |
| Interface | LVDS |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
Feature
Specification
Model
IDT-G101BFH-01
Brand
IDT
Size
10.1inch
Resolution
1920*1200
Pixel pitch
0.2175(H)*0.2088(V)mm
Display Mode
IPS/NB
Viewing Direction
ALL o'clock
Gray Scale Inversion Direction
ALL o'clock
28
300 cd/m2
LCM (W * H * D)
229.42 X 149.02 X 2.35mm
Active Area (W * H )
216.91 X 135.50mm
With /Without TP
Without TP
LED Numbers
6S6P-LED
Operation temperature
-20~+70℃
Storage temperature
-30~+85℃
Interface
LVDS/40PIN
LCM Power Supply
3.3V
LED Power Supply
9.0V
LCM Driver IC
HX8290B
Display color
16.7M
