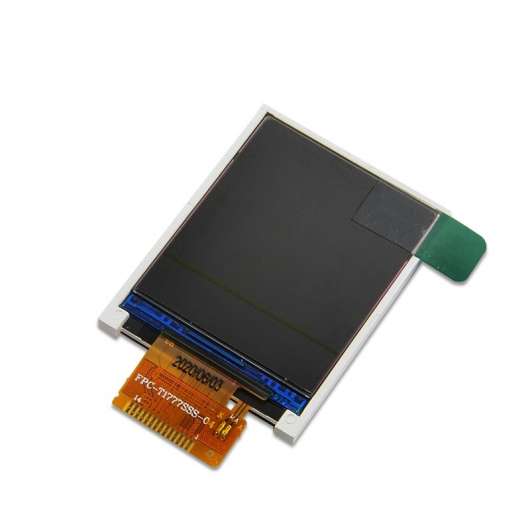

IDT-G177SSS-04 is a 1 77-inch LCD module with a resolution of 128 * 160 and a brightness of 220cd m2 It supports 4-wire SPI communication interface and can be used for photometers and tire pressure gauges
| Model | IDT-G177SSS-04 |
| Brand | IDT |
| Size | 1.77inch |
| Resolution | 128*160 |
| Brightness | 220cd/m2 |
| Perspective | 12 o'clock |
| Interface | MCU |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
Feature
Specification
Model
IDT-G177SSS-04
Brand
IDT
Size
1.77inch
Resolution
128*160
Pixel pitch
0.219(H)*0.219(V) mm
Display Mode
TN/NW
Viewing Direction
12 o'clock
Gray Scale Inversion Direction
6 o'clock
Luminance
220 cd/m2
LCM (W * H * D)
34.70x46.70x4.00 mm
Active Area (W * H )
28.03×35.04mm
With /Without TP
Without TP
LED Numbers
2P-LED
Operation temperature
-20~+70℃
Storage temperature
-30~+80℃
Interface
4-wire SPI/14PIN
LCM Power Supply
2.8V
LED Power Supply
3.0V
Color Depth
262K
LCM Driver IC
ST7735V
