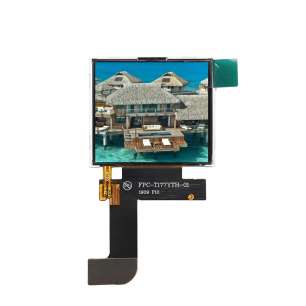

IDT-G177SSI-05 is a 1 77-inch LCD module with a resolution of 128 * 160 and a brightness of 250cd m2 It supports MCU 8BIT communication interface and can be used in TFT LCD display fields such as smart wearables and medical equipment
| Model | IDT-G177SSI-05 |
| Brand | IDT |
| Size | 1.77 |
| Resolution | 128*160 |
| Brightness | 250cd/m2 |
| Perspective | 6 o'clock |
| Interface | MCU |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
Feature
Specification
Model
IDT-G 177SSI-05
Brand
IDT
Size
1.77inch
Resolution
128*160
Pixel pitch
0.219(H)*0.219(V)mm
Display Mode
TN/NW
Viewing Direction
6 o'clock
Gray Scale Inversion Direction
12 o'clock
Luminance
220 cd/m2
LCM (W * H * D)
34.70*46.70*2.60mm
Active Area (W * H )
28.03*35.04mm
With /Without TP
Without TP
LED Numbers
2-LED
Operation temperature
-20~+70℃
Storage temperature
-30~+80℃
Interface
MCU-8bit/20PIN
LCM Power Supply
2.8V
LED Power Supply
3.0V
Color Depth
262K
LCM Driver IC
ILI9163V
