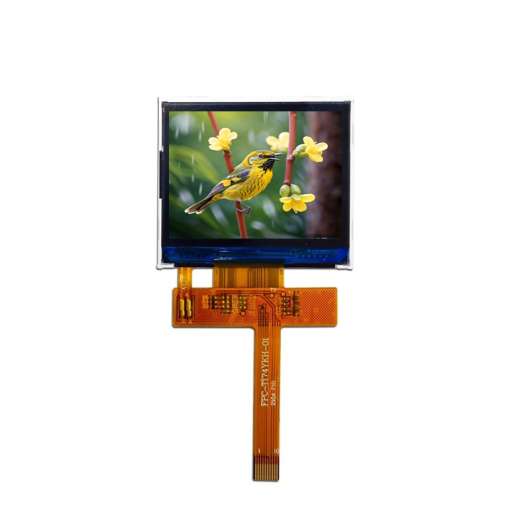

IDT-G174YKH-01 is a 1 74-inch LCD module with a semi reflective and semi transparent display mode, a resolution of 240x128, a brightness of 150cd m2, and a module driver IC of HX8347D It can be used for smart wearables
| Model | IDT-G174YKH-01 |
| Brand | IDT |
| Size | 1.74inch |
| Resolution | 240x128 |
| Brightness | 150cd/m² |
| Perspective | 80/80/80/80 |
| Interface | 8o'clock |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
Feature
Specification
Model
IDT-G174YKH-01
Brand
IDT
Size
1.74inch
Resolution
240*180
Pixel pitch
0.147(H)*0.147(V)mm
Display Mode
TN/NW
Viewing Direction
8:00 o'clock
Gray Scale Inversion Direction
- o'clock
Luminance
150 cd/m2
LCM (W * H * D)
40.77*36.20*2.40mm
Active Area (W * H )
35.28*26.46mm
With /Without TP
Without TP
LED Numbers
3P-LED
Operation temperature
-20~+70℃
Storage temperature
-30~+80℃
Interface
4 wire SPI
LCM Power Supply
3.3V
LED Power Supply
3.0 V
LCM Driver IC
HX8340B
Display color
262K
