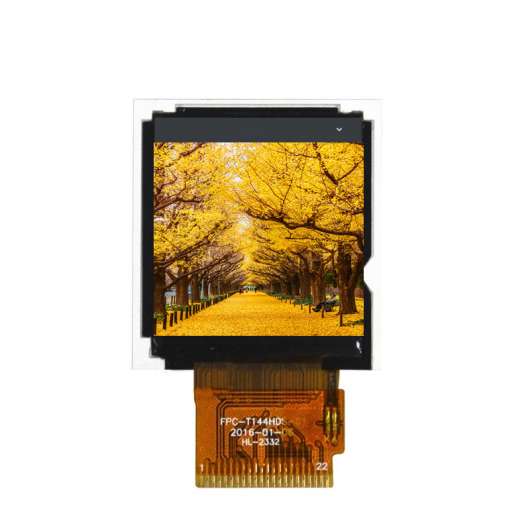

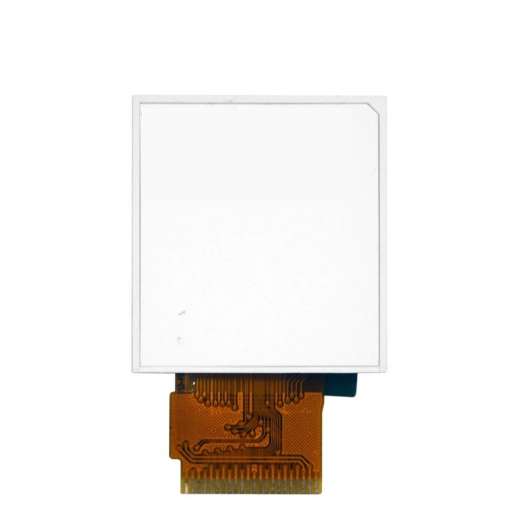

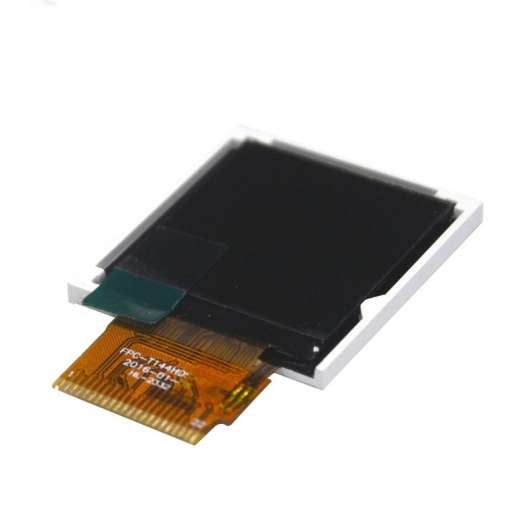

The model IDT-G144HDS-01 is a 1 44-inch TFT LCD module with a resolution of 128x128 and a brightness of 200cd m2 It supports MCU 9BIT communication interface and can be used in TFT LCD display fields such as smart wearables and medical equipment
| Model | IDT-G144HDS-01 |
| Brand | IDT |
| Size | 1.44inch |
| Resolution | 128x128 |
| Brightness | 200cd/m2 |
| Perspective | 6 o'clock |
| Interface | MCU 9BIT |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
Feature
Specification
Model
IDT-G144HDS-01
Brand
IDT
Size
1.44inch
Resolution
128*128
Pixel pitch
0.1992(H)*0.2070(V) mm
Display Mode
TN/NW
Viewing Direction
6 o'clock
Gray Scale Inversion Direction
12 o'clock
Luminance
200 cd/m2
LCM (W * H * D)
33.00*36.00*2.70mm
Active Area (W * H )
25.50*26.50mm
With /Without TP
Without TP
LED Numbers
1-LED
Operation temperature
-20~+70℃
Storage temperature
-30~+80℃
Interface
8BIT MCU
LCM Power Supply
2.8V
LED Power Supply
3.0V
Color Depth
262K
LCM Driver IC
ST7735
